Section 16-1:  Oxidation and Reduction Half-Reactions



During the reaction Zn + Pb2+→ Zn2+ + Pb, each neutral Zn atom loses two electrons to become a Zn2+ cation.  These two electrons are gained by a Pb2+ cation, which becomes a neutral Pb atom.  The reaction can be divided into two half-reactions that show separately the loss of electrons (known as oxidation) and the gain of electrons (known as reduction).



The oxidation half-reaction always shows the electrons lost on the right side of the equation:



oxidation:  Zn Zn2+ + 2e-



The reduction half-reaction always shows the electrons gained on the left side of the equation:



reduction:  Pb2+ + 2e- Pb



The overall reaction representing the sum of the oxidation and reduction half-reactions is known as an oxidation-reduction or redox reaction.  Thus, a redox reaction involves the transfer of electrons.





Section 16-2:  Using Oxidation Numbers to Identify Oxidizing and Reducing Agents



The reactant in the oxidation half-reaction that loses electrons is known as the reducing agent.  The reactant in the reduction half-reaction that gains electrons is known as the oxidizing agent.  In some redox reactions, it is not readily apparent which reactant is the oxidizing agent and which reactant is the reducing agent.



Assigning oxidation numbers (also known as oxidation states) to each atom in the reactants and products can help us identify the oxidizing and reducing agents.  Oxidation numbers can be integers or fractions.  To assign oxidation numbers, use the following rules:



Rule 1:  For a given reactant or product, the sum of the oxidation numbers for all atoms is equal to the overall charge in the chemical formula.



Rule 2:  For neutral monatomic and polyatomic elements, the oxidation number of each atom is zero.  For example, the oxidation numbers of the iron atom in Fe, each nitrogen atom in N2, and each sulfur atom in S8 are all zero.



Rule 3:  For monatomic ions, the oxidation number is equal to the charge on the ion.  For example, the oxidation number of aluminum in Al3+ is +3.



Rule 4:  For polyatomic ions containing only one element, the oxidation number of each atom is equal to the charge divided by the number of atoms.  For example, the oxidation number of each mercury atom in Hg22+ is +1 (+2 divided by 2).



Rule 5:  In neutral compounds or polyatomic ions containing more than one element, oxidation numbers are assigned to each atom as follows:



a. Group 1 metals (does not include hydrogen) = +1

b. Group 2 metals = +2

c. H = +1

d. F = -1

e. O = -2

f. Group 17 elements = -1

g. Group 16 elements = -2

h. Group 15 elements = -3

i.  The oxidation number of elements not listed above can be determined using a combination of known oxidation numbers and Rule 1.  For example, we know from Rule 5e that the oxidation number of each oxygen atom in Cr2O72- is -2.  Since Rule 1 specifies that the sum of the oxidation numbers for all atoms should equal the overall charge of -2, we can solve the following equation to determine the oxidation number of each chromium atom:



2(Cr) + 7(-2) = -2

Cr = +6



j. When rules conflict, the rule higher on this list (closer to top of page) takes priority.  For example, SF2 presents a conflict because Rule 5d specifies that F = -1 and Rule 5g specifies that S = -2, which does not conform to Rule 1 specifying that the sum of the oxidation numbers must equal the overall charge of zero.  Since Rule 5d specifying that F = -1 takes priority over Rule 5g, we can solve the following equation to determine the oxidation number of the sulfur atom:



S + 2(-1) = 0

S = +2



Sample Exercise 16A:



Determine all oxidation numbers in:



a. P4

b. S2-

c. CH2O

d. BrO3-

e. NaO2



Solution:



a. P = 0 (Rule 2)



b. S = -2 (Rule 3)



c. H = +1 (Rule 5c) and O = -2 (Rule 5e)

C + 2(+1) + (-2) = 0

C = 0



d. Conflict:  Rule 5e (O = -2) takes priority over Rule 5f

Br + 3(-2) = -1

Br = +5



e. Conflict:  Rule 5a (Na = +1) takes priority over Rule 5e

(+1) + 2(O) = 0

O = -1/2





Once we have assigned oxidation numbers to every atom in the reactants and products, we can determine which reactant is the reducing agent and which reactant is the oxidizing agent as follows:



reducing agent (loses electrons) = reactant containing an element that undergoes an increase in oxidation number (becomes more positive or less negative)



oxidizing agent (gains electrons) = reactant containing an element that undergoes a decrease in oxidation number (becomes less positive or more negative)



Reactions during which no elements undergo a change in oxidation number are not redox reactions.



Sample Exercise 16B:



Determine all oxidation numbers in the following unbalanced reactions, and then decide which of the two is a redox reaction.  For the redox reaction, identify the reducing agent and the oxidizing agent.



a. Na2SO4 + BaCl2 BaSO4 + NaCl

b. VO2+ + F2 VO2+ + F-



Solution:



Using oxidation number rules in order of priority:



a. Na2SO4 (Na = +1, O = -2, S = +6) + BaCl2 (Ba = +2, Cl = -1) BaSO4 (Ba = +2, O = -2, S = +6) + NaCl (Na = +1, Cl = -1)



Since no elements undergo a change in oxidation number, this is not a redox reaction.



b. VO2+ (O = -2, V = +4) + F2 (F = 0) VO2+ (O = -2, V = +5) + F- (F = -1)



Since oxidation numbers change, this is a redox reaction.  VO2+ contains the element V that undergoes an increase in oxidation number from +4 to +5, so VO2+ is the reducing agent.  F2 contains the element F that undergoes a decrease in oxidation number from 0 to -1, so F2 is the oxidizing agent.





Section 16-3:  Balancing Redox Reactions in Aqueous Acidic Solutions



Redox reactions that occur in aqueous acidic solutions can be balanced by not only changing coefficients, but also by adding hydrogen ions (H+) and water molecules into the reaction.  The steps required will be demonstrated in order while balancing the following equation using the smallest possible whole-number coefficients:



H2C2O4 + NO3- CO2 + NO



Step 1:  Determine all oxidation numbers in the unbalanced equation, then identify the reducing agent and the oxidizing agent.



H2C2O4 (H = +1, O = -2, C = +3) + NO3- (O = -2, N = +5) CO2 (O = -2, C = +4) + NO (O = -2, N = +2)



H2C2O4 contains the element C that undergoes an increase in oxidation number from +3 to +4, so H2C2O4 is the reducing agent.  NO3- contains the element N that undergoes a decrease in oxidation number from +5 to +2, so NO31- is the oxidizing agent.



Step 2:  Write the unbalanced oxidation half-reaction and the unbalanced reduction half-reaction.  The reducing agent is always the reactant on the left side of the oxidation half-reaction, and the oxidizing agent is always the reactant on the left side of the reduction half-reaction.  The product on the right side of each half-reaction must contain the same element that underwent a change in oxidation number as the reactant in that same half-reaction:



oxidation:  H2C2O4 CO2

reduction:  NO3- NO



Step 3:  Change coefficients as necessary to balance all elements except oxygen and hydrogen:



oxidation:  H2C2O4 2 CO2

reduction:  NO3- NO



Step 4:  Balance oxygen by adding H2O molecules as necessary to the deficient side:



oxidation:  H2C2O4 2 CO2

reduction:  NO3- NO + 2 H2O



Step 5:  Balance hydrogen by adding H+ ions as necessary to the deficient side:



oxidation:  H2C2O4 2 CO2 + 2 H+

reduction:  NO3- + 4 H+ NO + 2 H2O



Step 6:  Add enough electrons to the right side of the oxidation half-reaction and the left side of the reduction half-reaction to ensure that the total charge is equal on both sides of each half-reaction.  The total charge on each side of a half-reaction can be determined by finding the sum of (coefficient x charge) for all reactants or products on that side of the equation:



oxidation:  H2C2O4 2 CO2 + 2 H+ + 2 e- (total charge on left = 1 x 0 = 0, total charge on right = 2 x 0 + 2 x 1 + 2 x -1 = 0)

reduction:  NO3- + 4 H+ + 3 e- NO + 2 H2O (total charge on left = 1 x -1 + 4 x 1 + 3 x -1 = 0, total charge on right = 1 x 0 + 2 x 0 = 0)



Step 7:  Determine the least common multiple (LCM) of the electron coefficients in each half-reaction.  Multiply all the coefficients in each half-reaction by an integer that will give both half-reactions an electron coefficient equal to the LCM:



LCM of electron coefficients 2 and 3 = 6



oxidation:  (H2C2O4 2 CO2 + 2 H+ + 2 e-) x 3

= 3 H2C2O4 6 CO2 + 6 H+ + 6 e-



reduction:  (NO3- + 4 H+ + 3 e- NO + 2 H2O) x 2

= 2 NO3- + 8 H+ + 6 e- 2 NO + 4 H2O



Step 8:  Add the two half-reactions to obtain the overall balanced equation, which should no longer contain electrons and should have the same total charge on both sides:



3 H2C2O4 + 2 NO3- + 8 H+ + 6e- 6 CO2 + 6 H+ + 6 e- + 2 NO + 4 H2O

overall balanced equation: 3 H2C2O4 + 2 NO3- + 2 H+ 6 CO2 + 2 NO + 4 H2O

(total charge on left = 3 x 0 + 2 x -1 + 2 x 1 = 0, total charge on right = 6 x 0 + 2 x 0 + 4 x 0 = 0)



Sample Exercise 16C:



Determine all oxidation numbers, identify the reducing agent and oxidizing agent, and balance the following equation that occurs in aqueous acidic solution using the smallest possible whole-number coefficients:



Cr2O72- + I2 Cr3+ + IO3-


Solution:



Step 1:

Cr2O72- (O = -2, Cr = +6) + I2 (I = 0) Cr3+ (Cr = +3) + IO3- (O = -2, I = +5)

reducing agent = I2 (oxidation number of I increases from 0 to +5)

oxidizing agent = Cr2O72- (oxidation number of Cr decreases from +6 to +3)



Step 2:

oxidation:  I2 IO3-

reduction:  Cr2O72- Cr3+



Step 3:

oxidation:  I2 2 IO3-

reduction:  Cr2O72- 2 Cr3+



Step 4:

oxidation:  I2 + 6 H2O 2 IO3-

reduction:  Cr2O72- 2 Cr3+ + 7 H2O



Step 5:

oxidation:  I2 + 6 H2O 2 IO3- + 12 H+

reduction:  Cr2O72- + 14 H+ 2 Cr3+ + 7 H2O



Step 6:

oxidation:  I2 + 6 H2O 2 IO3- + 12 H+ + 10 e-

reduction:  Cr2O72- + 14 H+ + 6 e- 2 Cr3+ + 7 H2O



Step 7:  LCM of electron coefficients 10 and 6 = 30

oxidation:  (I2 + 6 H2O 2 IO3- + 12 H+ + 10 e-) x 3

= 3 I2 + 18 H2O 6 IO3- + 36 H+ + 30 e-



reduction:  (Cr2O72- + 14 H+ + 6 e- 2 Cr3+ + 7 H2O) x 5

= 5 Cr2O72- + 70 H+ + 30 e- 10 Cr3+ + 35 H2O



Step 8:

3 I2 + 18 H2O + 5 Cr2O72- + 70 H+ + 30 e- 6 IO3- + 36 H+ + 30 e- + 10 Cr3+ + 35 H2O

overall balanced equation: 3 I2 + 5 Cr2O72- + 34 H+ 6 IO3- + 10 Cr3+ + 17 H2O

(total charge on left = 3 x 0 + 5 x -2 + 34 x 1 = +24, total charge on right = 6 x -1 + 10 x 3 + 17 x 0 = +24)



To balance redox reactions that do not involve oxygen or hydrogen, omit Step 4 and Step 5 from the method above.





Section 16-4:  Using a Standard Reduction Potentials Table to Compare Strengths of Oxidizing and Reducing Agents


The table of standard reduction potentials (E°red) in the unit volts (V) shown below can be used to compare the relative tendency of reduction half-reactions to occur under standard conditions (all aqueous reactants and products having a concentration of 1 M and all gaseous reactants and products having a partial pressure of 1 atm):



Half-Reaction

red (V)

F2 (g) + 2 e- 2 F- (aq)

+2.87

Co3+ (aq) + 1 e- Co2+ (aq)

+1.82

Au3+ (aq) + 3 e- Au (s)

+1.50

Cl2 (g) + 2 e- 2 Cl- (aq)

+1.36

O2 (g) + 4 H+ (aq) + 4 e- 2 H2O (l)

+1.23

Br2 (l) + 2 e- 2 Br- (aq)

+1.07

NO3- (aq) + 4 H+ (aq) + 3 e- NO (g) + 2 H2O (l)

+0.96

Ag+ (aq) + 1 e- Ag (s)

+0.80

Fe3+ (aq) + 1 e- Fe2+ (aq)

+0.77

I2 (s) + 2 e- 2 I- (aq)

+0.53

Cu2+ (aq) + 2 e- Cu (s)

+0.34

Sn4+ (aq) + 2 e- Sn2+ (aq)

+0.15

2 H+ (aq) + 2 e- H2 (g)

0

Pb2+ (aq) + 2 e- Pb (s)

-0.13

Sn2+ (aq) + 2 e- Sn (s)

-0.14

Ni2+ (aq) + 2 e- Ni (s)

-0.25

V3+ (aq) + 1 e- V2+ (aq)

-0.26

Co2+ (aq) + 2 e- Co (s)

-0.28

Cd2+ (aq) + 2 e- Cd (s)

-0.40

Fe2+ (aq) + 2 e- Fe (s)

-0.44

Cr3+ (aq) + 3 e- Cr (s)

-0.74

Zn2+ (aq) + 2 e- Zn (s)

-0.76

2 H2O (l) + 2 e- H2 (g) + 2 OH- (aq)

-0.83

Mn2+ (aq) + 2 e- Mn (s)

-1.18

Al3+ (aq) + 3 e- Al (s)

-1.66

Mg2+ (aq) + 2 e- Mg (s)

-2.37

Na+ (aq) + 1 e- Na (s)

-2.71

Ca2+ (aq) + 2 e- Ca (s)

-2.87

Ba2+ (aq) + 2 e- Ba (s)

-2.90

K+ (aq) + 1 e- K (s)

-2.92

Li+ (aq) + 1 e- Li (s)

-3.05



When E°red is more positive or less negative, the reduction half-reaction will have a greater tendency to occur.  This means that the reactant in the reduction half-reaction will have a greater tendency to gain electrons, making it a stronger oxidizing agent.



Sample Exercise 16D:


Rank the aqueous cations Ag+, Au3+, Co2+, and Sn2+ from weakest to strongest oxidizing agent under standard conditions. Justify your answer using a table of standard reduction potentials.



Solution:



The cations should be ranked from most negative to most positive red:



weakest oxidizing agent = Co2+ (-0.28 V) < Sn2+ (-0.14 V) < Ag+ (+0.80 V) < Au3+ (+1.50 V) = strongest oxidizing agent





Any reduction half-reaction on the table above can be reversed to yield an oxidation half-reaction with a standard oxidation potential, ox, equal in magnitude but opposite in sign to red for the reduction half-reaction.  For example:



2 F- (aq) F2 (g) + 2 e-     ox = -2.87 V

Li (s)   Li+ (aq) + 1 e-     ox = +3.05 V



When ox is more positive or less negative, the oxidation half-reaction will have a greater tendency to occur.  This means that the reactant in the oxidation half-reaction will have a greater tendency to lose electrons, making it a stronger reducing agent.



Sample Exercise 16E:



Rank the aqueous cations Co2+, Fe2+, and Sn2+ from weakest to strongest reducing agent under standard conditions. Justify your answer using a table of standard reduction potentials.



Solution:



First, we reverse the appropriate half-reactions from the table above:



Co2+ (aq) Co3+ (aq) + 1 e-     ox = -1.82 V

Fe2+ (aq) Fe3+ (aq) + 1 e-     ox = -0.77 V

Sn2+ (aq) Sn4+ (aq) + 2 e-     ox = -0.15 V



We then rank the cations from most negative to least negative ox:



weakest reducing agent = Co2+ < Fe2+ < Sn2+ = strongest reducing agent





Section 16-5:  Calculating cell and ΔG° to Determine Spontaneity of Redox Reactions


The standard cell potential (or standard cell voltage), cell, for a redox reaction can be calculated by adding the standard oxidation potential for the oxidation half-reaction to the standard reduction potential for the reduction half-reaction:



cell = ox + red



If cell is positive, the reaction will be spontaneous under standard conditions.  If cell is negative, the reaction will be nonspontaneous under standard conditions.



ΔG° for a redox reaction can be calculated from cell using the following equation:



ΔG° = -nFE°cell



n represents the number of electrons transferred in the balanced equation and is equal to the LCM of the electron coefficients in the oxidation and reduction half-reactions prior to Step 7 of the balancing process.  F is known as Faraday's Constant and represents the electric charge in the unit coulombs (C) per mole of electrons.  F has a value of 96,500 C/mol.  Given that 1 V = 1 J/C, we will replace the cell unit V with J/C when calculating ΔG° from cell:



Sample Exercise 16F:


Calculate cell and ΔG° for the reaction Cr (s) + Sn4+ (aq) Cr3+ (aq) + Sn2+ (aq), determine if the reaction is spontaneous or nonspontaneous under standard conditions, and then balance the equation.



Solution:



The half-reactions prior to Step 7 of the balancing process are:



oxidation:  Cr (s) Cr3+ (aq) + 3 e-     ox = +0.74 V

reduction:  Sn4+ (aq) + 2 e- Sn2+ (aq)     red = +0.15 V



Thus, cell = ox + red = 0.74 V + 0.15 V = 0.89 V.  Note that multiplying the coefficients in each half-reaction during Step 7 of the balancing process will not change the values of ox or red.  ΔG° can be calculated from cell as follows:



n = LCM of electron coefficients 3 and 2 = 6



Since cell > 0 and ΔG° < 0, the reaction is spontaneous under standard conditions.  The remaining steps in the balancing process are:



oxidation:  (Cr (s) Cr3+ (aq) + 3 e-) x 2

reduction:  (Sn4+ (aq) + 2 e- Sn2+ (aq)) x 3



overall balanced equation:  2 Cr (s) + 3 Sn4+ (aq) 2 Cr3+ (aq) + 3 Sn2+ (aq)





Section 16-6:  Redox Reactions of Metals, Acids, and Halogens



(a) solid metal + aqueous metal nitrate or aqueous metal sulfate



Aqueous nitrate and sulfate ions are generally spectator ions during redox reactions occurring in non-acidic solutions that lack a significant concentration of H+ ions.  As such, when a solid metal reacts with an aqueous metal nitrate or metal sulfate solution, the half-reactions follow the pattern:



oxidation:  M1 (s) M1m+ (aq) + m e-

reduction:  M2n+ (aq) + n e- M2 (s)



Therefore, the unbalanced net ionic equation will be:



M1 (s) + M2n+ (aq) M1m+ (aq) + M2 (s)



(b) solid metal + aqueous hydrochloric acid



HCl ionizes completely into H+ and Cl- in water.  When a solid metal reacts an aqueous hydrochloric acid solution, the chloride ion will be a spectator ion.  As such, the half-reactions follow the pattern:



oxidation:  M (s) Mm+ (aq) + m e-

reduction:  2 H+ (aq) + 2 e- H2 (g)



 Therefore, the unbalanced net ionic equation will be:



M (s) + H+ (aq) Mm+ (aq) + H2 (g)



(c) solid metal + aqueous nitric acid



HNO3 ionizes completely into H+ and NO3- in water.  When a solid metal reacts with an aqueous nitric acid solution, since the nitrate ion is a strong oxidizing agent in acidic solutions, the half-reactions follow the pattern:



oxidation:  M (s) Mm+ (aq) + m e-

reduction:  NO3- (aq) + 4 H+ (aq) + 3 e- NO (g) + 2 H2O (l)



Therefore, the unbalanced net ionic equation will be:



M (s) + NO3- (aq) + H+ (aq) Mm+ (aq) + NO (g) + H2O (l)



(d) diatomic halogen + aqueous metal halide



When a diatomic halogen reacts with an aqueous metal halide solution, the metal ion will be a spectator ion.  As such, the half-reactions will follow the pattern:



oxidation:  2 X- (aq) X2 (s, l, or g) + 2 e-

reduction:  Y2 (s, l, or g) + 2 e- 2 Y- (aq)



Therefore, the unbalanced net ionic equation will be:



X- (aq) + Y2 (s, l, or g) X2 (s, l, or g) + Y- (aq)



Sample Exercise 16G:



Which reaction in each pair below will be spontaneous under standard conditions?  For each spontaneous reaction, calculate cell and ΔG°, then balance the equation.



1a. NiSO4 (aq) + solid manganese metal or 1b. NiSO4 (aq) + solid lead metal?



2a. aqueous hydrochloric acid + solid magnesium metal or 2b. aqueous hydrochloric acid + solid silver metal?



3a. aqueous nitric acid + solid copper metal or 3b. aqueous nitric acid + solid gold metal?



4a. liquid bromine + aqueous potassium iodide or 4b. solid iodine + aqueous sodium bromide?



Solution:


1a. SO42- = spectator ion

oxidation:  Mn (s) Mn2+ (aq) + 2 e-     ox = +1.18 V

reduction:  Ni2+ (aq) + 2 e- Ni (s)     red = -0.25 V



cell = 1.18 V + (-0.25 V) = 0.93 V > 0 = spontaneous





balanced equation: Mn (s) + Ni2+ (aq) Mn2+ (aq) + Ni (s)





1b. SO42- = spectator ion

oxidation:  Pb (s) Pb2+ (aq) + 2 e-     ox = +0.13 V

reduction:  Ni2+ (aq) + 2 e- Ni (s)     red = -0.25 V



cell = 0.13 V + (-0.25 V) < 0 = nonspontaneous



2a. Cl- = spectator ion

oxidation:  Mg (s) Mg2+ (aq) + 2 e-     ox = +2.37 V

reduction:  2 H+ (aq) + 2 e- H2 (g)     red = 0 V



cell = 2.37 V + 0 V = 2.37 V > 0 = spontaneous





balanced equation: Mg (s) + 2 H+ (aq) Mg2+ (aq) + H2 (g)



2b. Cl- = spectator ion

oxidation:  Ag (s) Ag+ (aq) + 1 e-     ox = -0.80 V

reduction:  2 H+ (aq) + 2 e- H2 (g)     red = 0 V



cell = (-0.80 V) + 0 V < 0 = nonspontaneous



3a.

oxidation:  Cu (s) Cu2+ (aq) + 2 e-     ox = -0.34 V

reduction:  NO3- (aq) + 4 H+ (aq) + 3 e- NO (g) + 2 H2O (l)     red = +0.96 V



cell = (-0.34 V) + 0.96 = 0.62 V > 0 = spontaneous





balanced equation:  3 Cu (s) + 2 NO3- (aq) + 8 H+ (aq) 3 Cu2+ (aq) + 2 NO (g) + 4 H2O (l)





3b.

oxidation:  Au (s) Au3+ (aq) + 3 e-     ox = -1.50 V

reduction:  NO3- (aq) + 4 H+ (aq) + 3 e- NO (g) + 2 H2O (l)     red = +0.96 V



cell = (-1.50 V) + 0.96 < 0 = nonspontaneous



4a. K+ = spectator ion

oxidation:  2 I- (aq) I2 (s) + 2 e-     ox = -0.53 V

reduction:  Br2 (l) + 2 e- 2 Br- (aq)     red = 1.07 V



cell = (-0.53 V) + 1.07 = 0.54 V > 0 = spontaneous





balanced equation:  2 I- (aq) + Br2 (l) I2 (s) + 2 Br- (aq)





4b. Na+ = spectator ion

oxidation:  2 Br- (aq) Br2 (l) + 2 e-     ox = -1.07 V

reduction:  I2 (s) + 2 e- 2 I- (aq)     red = +0.53 V



cell = (-1.07 V) + 0.53 < 0 = nonspontaneous




Section 16-7:  Experiment – Constructing a Galvanic Cell


A galvanic cell (or voltaic cell) utilizes a spontaneous redox reaction to provide electrical energy.  The oxidation and reduction half-reactions are separated into two different compartments.  As such, the electrons transferred must flow from the location of oxidation to the location of reduction through a metal wire.  This spontaneous movement of electrons provides electrical energy.



A galvanic cell can be constructed using standard laboratory chemicals and equipment as follows:



1. Immerse one end of a metal strip in a beaker containing aqueous ions of that same metal.  Repeat in a second beaker using a different metal.  Note that the anions in each beaker will be spectator ions.



2. Connect the non-immersed ends of the two metal strips using a metal wire.  A voltmeter can be attached along the wire to read the voltage as the galvanic cell operates.  Note that if 1 M aqueous solutions are used in the beakers, then the reading on the voltmeter will be equal to cell for the spontaneous reaction.



3. Connect the aqueous solutions in the two beakers using a salt bridge that can be constructed using a U-shaped glass tube containing an aqueous ionic salt.  Note that the ions in the salt bridge will not be part of the spontaneous reaction.  The purpose of the salt bridge is to keep the solutions in each beaker electrically neutral, which means that the total positive charge equals the total negative charge.  Negatively-charge anions will flow out from the salt bridge into the beaker where oxidation is occurring to counteract the positively-charged metal cations being created there.  Positively-charged cations will flow out from the salt bridge into the beaker where reduction is occurring to replace the positively-charged metal cations being consumed there.

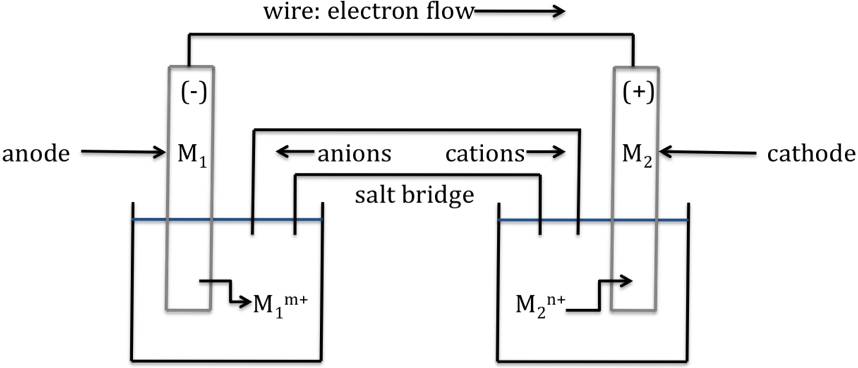

A sketch of a galvanic cell in operation is shown below:





Key aspects of the galvanic cell are:



1. The metal electrode that undergoes oxidation (M1) is known as the anode and is typically labeled (-).  The anode will lose mass as the reaction proceeds.  The metal electrode that is the product of reduction (M2) is known as the cathode and is typically labeled (+).  The cathode will gain mass as the reaction proceeds.



2. Electrons flow through the wire from anode to cathode, or from (-) to (+).



3. Anions flow out of the salt bridge toward the anode.  Cations flow out of the salt bridge toward the cathode.



Sample Exercise 16H:


A galvanic cell was constructed using a strip of aluminum metal and a strip of zinc metal, a 1 M solution of Al(NO3)3 and a 1 M solution of ZnSO4, and an aqueous solution of KNO3 in the salt bridge.  For the spontaneous reaction that occurred, calculate cell and ΔG°, then balance the equation.  Also sketch the galvanic cell.



Solution:



We must choose the correct combination of half-reactions to obtain a spontaneous reaction (nitrate and sulfate = spectator ions):



oxidation:  Al (s) Al3+ (aq) + 3 e-     ox = +1.66 V

reduction:  Zn2+ (aq) + 2 e- Zn (s)     red = -0.76 V



cell = 1.66 V + (-0.76 V) = 0.90 V > 0 = spontaneous





balanced equation: 2 Al (s) + 3 Zn2+ (aq) 2 Al3+ (aq) + 3 Zn (s)



Redraw the galvanic cell sketch shown above, making the following substitutions:



M1 = Al, M1m+ = Al3+

M2 = Zn, M2n+ = Zn2+

anions = NO3-, cations = K+




Section 16-8:  Nonspontaneous Redox Reactions and Electrolysis


A nonspontaneous redox reaction can still occur through a process known as electrolysis if a high enough voltage is applied.  As is the case for a galvanic cell, oxidation occurs at the anode and reduction occurs at the cathode in an electrolytic cell.  The minimum voltage required for electrolysis under standard conditions is equal to the absolute value of cell for the nonspontaneous reaction:



electrolysis:  minimum voltage = |cell|



Sample Exercise 16I:


Calculate the minimum voltage required to bring about the reaction Br- (aq) + Fe3+ (aq) Br2 (l) + Fe2+ (aq) by electrolysis under standard conditions, then balance the equation.



Solution:


oxidation (at anode):  2 Br- (aq) Br2 (l) + 2 e-     ox = -1.07 V

reduction (at cathode):  Fe3+ (aq) + 1 e- Fe2+ (aq)     red = +0.77 V



cell = (-1.07 V) + 0.77 = -0.30 V

minimum voltage = |-0.30 V| = 0.30 V



balanced equation:  2 Br- (aq) + 2 Fe3+ (aq) Br2 (l) + 2 Fe2+ (aq)




If a liquid (also known as molten) ionic metal halide such as LiCl, CaBr2, or NaI is electrolyzed, the halide anion will be oxidized at the anode to a neutral diatomic halogen while the metal cation will be reduced at the cathode to a neutral metal:



oxidation (at anode):  2 X - X2 + 2 e-

reduction (at cathode):  Mn+ + n e- M



Sample Exercise 16J:


For the electrolysis of molten LiCl, write the half-reaction that occurs at the anode and the half-reaction that occurs at the cathode, then balance the equation.



Solution:



oxidation (at anode):  2 Cl- Cl2 + 2 e-

reduction (at cathode):  Li+ + 1 e- Li



balanced equation:  2 Cl- + 2 Li+ Cl2 + 2Li



Chapter 16 Practice Exercises and Review Quizzes:



16-1) Determine all oxidation numbers in:



a. Ga3+

b. S2O32-

c. Br2

d. H2O2

e. CaH2

Click for Solution



16-1)

a. Ga = +3 (Rule 3)



b. Conflict:  Rule 5e (O = -2) takes priority over Rule 5g

2(S) + 3(-2) = -2

S = +2



c. Br = 0 (Rule 2)



d. Conflict:  Rule 5c (H = +1) takes priority over Rule 5e

2(+1) + 2(O) = 0

O = -1



e. Conflict:  Rule 5b (Ca = +2) takes priority over Rule 5c

(+2) + 2(H) = 0

H = -1





16-2) Determine all oxidation numbers in the following unbalanced reactions, and then decide which of the two is a redox reaction.  For the redox reaction, identify the reducing agent and the oxidizing agent.



a. ClO4- + Ge2+   ClO3- + Ge4+

b. Mg(NO3)2 + KOH Mg(OH)2 + KNO3



Click for Solution



16-2) Using oxidation number rules in order of priority:



a. ClO4- (O = -2, Cl = +7) + Ge2+ (Ge = +2)   ClO3- (O = -2, Cl = + 5) + Ge4+ (Ge = +4)



Since oxidation numbers change, this is a redox reaction.  Ge2+ contains the element Ge that undergoes an increase in oxidation number from +2 to +4, so Ge2+ is the reducing agent.  ClO4- contains the element Cl that undergoes a decrease in oxidation number from +7 to +5, so ClO4- is the oxidizing agent.



b. Mg(NO3)2 (Mg = +2, O = -2, N = +5) + KOH (K = +1, H = +1, O = -2) Mg(OH)2 (Mg = +2, H = +1, O = -2) + KNO3 (K = +1, O = -2, N = +5)



Since no elements undergo a change in oxidation number, this is not a redox reaction.





16-3) Determine all oxidation numbers, identify the reducing agent and oxidizing agent, and balance the following equation that occurs in aqueous acidic solution using the smallest possible whole-number coefficients:



MnO4- + As2O3 Mn2+ + H3AsO4



Click for Solution



16-3)

Step 1:

MnO4- (O = -2, Mn = +7) + As2O3 (O = -2, As = +3) Mn2+ (Mn = +2) + H3AsO4 (H = +1, O = -2, As = +5)

reducing agent = As2O3 (oxidation number of As increases from +3 to +5)

oxidizing agent = MnO4- (oxidation number of Mn decreases from +7 to +2)



Step 2:

oxidation:  As2O3 H3AsO4

reduction:  MnO4- Mn2+



Step 3:

oxidation:  As2O3 2 H3AsO4

reduction:  MnO4- Mn2+



Step 4:

oxidation:  As2O3 + 5 H2O 2 H3AsO4

reduction:  MnO4- Mn2+ + 4 H2O



Step 5:

oxidation:  As2O3 + 5 H2O 2 H3AsO4 + 4 H+

reduction:  MnO4- + 8 H+ Mn2+ + 4 H2O



Step 6:

oxidation:  As2O3 + 5 H2O 2 H3AsO4 + 4 H+ + 4 e-

reduction:  MnO4- + 8 H+ + 5 e- Mn2+ + 4 H2O



Step 7:  LCM of electron coefficients 4 and 5 = 20

oxidation:  (As2O3 + 5 H2O 2 H3AsO4 + 4 H+ + 4 e-) x 5

= 5 As2O3 + 25 H2O 10 H3AsO4 + 20 H+ + 20 e-



reduction:  (MnO4- + 8 H+ + 5 e- Mn2+ + 4 H2O) x 4

= 4 MnO4- + 32 H+ + 20 e- 4 Mn2+ + 16 H2O



Step 8:

5 As2O3 + 25 H2O + 4 MnO4- + 32 H+ + 20 e- 10 H3AsO4 + 20 H+ + 20 e- + 4 Mn2+ + 16 H2O

overall balanced equation: 5 As2O3 + 9 H2O + 4 MnO4- + 12 H+ 10 H3AsO4 + 4 Mn2+

(total charge on left = 5 x 0 + 9 x 0 + 4 x -1 + 12 x 1 = +8, total charge on right = 10 x 0 + 4 x 2 = +8)





16-4) Rank the halogens Br2 (l),  Cl2 (g), F2 (g),  and I2 (s) from weakest to strongest oxidizing agent under standard conditions. Justify your answer using a table of standard reduction potentials.



Click for Solution



16-4) The halogens should be ranked from least positive to most positive red:



weakest oxidizing agent = I2 (+0.53 V) < Br2 (+1.07 V) < Cl2 (+1.36 V) < F2 (+2.87 V) = strongest oxidizing agent





16-5) Rank the solid alkaline earth metals Ba, Ca, and Mg from weakest to strongest reducing agent under standard conditions. Justify your answer using a table of standard reduction potentials.



Click for Solution



16-5) First, we reverse the appropriate half-reactions from the table of standard reduction potentials:



Mg (s) Mg2+ (aq) + 2 e-     ox = +2.37 V

Ca (s) Ca2+ (aq) + 2 e-     ox = +2.87 V

Ba (s) Ba2+ (aq) + 2 e-     ox = +2.90 V



We then rank the metals from least positive to most positive ox:



weakest reducing agent = Mg < Ca < Ba = strongest reducing agent





16-6) Calculate E°cell and ΔG° for the reaction V3+ (aq) + I- (aq) V2+ (aq) + I2 (s), determine if the reaction is spontaneous or nonspontaneous under standard conditions, and then balance the equation.

Click for Solution

 16-6) The half-reactions prior to Step 7 of the balancing process are:



oxidation:  2 I- (aq) I2 (s) + 2 e-     ox = -0.53 V

reduction:  V3+ (aq) + 1 e- V2+ (aq)     red = -0.26 V



Thus, E°cell = E°ox + E°red = (-0.53 V) + (-0.26 V) = -0.79 V.  Note that multiplying the coefficients in each half-reaction during Step 7 of the balancing process will not change the values of E°ox or E°red.  ΔG° can be calculated from E°cell as follows:



n = LCM of electron coefficients 2 and 1 = 2



Since E°cell < 0 and ΔG° > 0, the reaction is nonspontaneous under standard conditions.  The remaining steps in the balancing process are:



oxidation:  (2 I- (aq) I2 (s) + 2 e-) x 1

reduction:  (V3+ (aq) + 1 e- V2+ (aq)) x 2



overall balanced equation:  2 V3+ (aq) + 2 I- (aq) 2 V2+ (aq) + I2 (s)





16-7) Which reaction in each pair below will be spontaneous under standard conditions?  For each spontaneous reaction, calculate cell and ΔG°, then balance the equation.



1a. aqueous nitric acid + solid gold metal or 1b. aqueous nitric acid + solid silver metal?



2a. liquid bromine + aqueous potassium chloride or 2b. chlorine gas + aqueous sodium iodide?



3a. AgNO3 (aq) + solid copper metal or 3b. AgNO3 (aq) + solid gold metal?



4a. aqueous hydrochloric acid + solid copper metal or 4b. aqueous hydrochloric acid + solid zinc metal?



Click for Solution



16-7)

1a.

oxidation:  Au (s) Au3+ (aq) + 3 e-     ox = -1.50 V

reduction:  NO3- (aq) + 4 H+ (aq) + 3 e- NO (g) + 2 H2O (l)     red = +0.96 V



cell = (-1.50 V) + 0.96 < 0 = nonspontaneous



1b.

oxidation:  Ag (s) Ag+ (aq) + 1 e-     ox = -0.80 V

reduction:  NO3- (aq) + 4 H+ (aq) + 3 e- NO (g) + 2 H2O (l)     red = +0.96 V



cell = (-0.80 V) + 0.96 = 0.16 V > 0 = spontaneous





balanced equation:  3 Ag (s) + NO3- (aq) + 4 H+ (aq) 3 Ag+ (aq) + NO (g) + 2 H2O (l)



2a. K+ = spectator ion

oxidation:  2 Cl- (aq) Cl2 (g) + 2 e-     ox = -1.36 V

reduction:  Br2 (l) + 2 e- 2 Br- (aq)     red = 1.07 V



cell = (-1.36 V) + 1.07 < 0 = nonspontaneous



2b. Na+ = spectator ion

oxidation:  2 I- (aq) I2 (s) + 2 e-     ox = -0.53 V

reduction:  Cl2 (g) + 2 e- 2 Cl- (aq)     red = +1.36 V



cell = (-0.53 V) + 1.36 = 0.83 V > 0 = spontaneous





balanced equation:  2 I- (aq) + Cl2 (g) I2 (s) + 2 Cl- (aq)





3a. NO3- = spectator ion

oxidation:  Cu (s) Cu2+ (aq) + 2 e-     ox = -0.34 V

reduction:  Ag+ (aq) + 1 e- Ag (s)     red = +0.80 V



cell = (-0.34 V) + 0.80 V = 0.46 V > 0 = spontaneous





balanced equation: Cu (s) + 2 Ag+ (aq) Cu2+ (aq) + 2 Ag (s)



3b. NO3- = spectator ion

oxidation:  Au (s) Au3+ (aq) + 3 e-     ox = -1.50 V

reduction:  Ag+ (aq) + 1 e- Ag (s)     red = +0.80 V



cell = (-1.50 V) + 0.80 < 0 = nonspontaneous



4b. Cl- = spectator ion

oxidation:  Cu (s) Cu2+ (aq) + 2 e-     ox = -0.34 V

reduction:  2 H+ (aq) + 2 e- H2 (g)     red = 0 V



cell = (-0.34 V) + 0 V < 0 = nonspontaneous



4a. Cl- = spectator ion

oxidation:  Zn (s) Zn2+ (aq) + 2 e-     ox = +0.76 V

reduction:  2 H+ (aq) + 2 e- H2 (g)     red = 0 V



cell = 0.76 V + 0 V = 0.76 V > 0 = spontaneous





balanced equation: Zn (s) + 2 H+ (aq) Zn2+ (aq) + H2 (g)





16-8) A galvanic cell was constructed using a strip of cadmium metal and a strip of chromium metal, a 1 M solution of CdSO4 and a 1 M solution of Cr(NO3)3, and an aqueous solution of Na2SO4 in the salt bridge.  For the spontaneous reaction that occurred, calculate cell and ΔG°, then balance the equation.  Also sketch the galvanic cell.



Click for Solution



16-8) We must choose the correct combination of half-reactions to obtain a spontaneous reaction (nitrate and sulfate = spectator ions):



oxidation:  Cr (s) Cr3+ (aq) + 3 e-     ox = +0.74 V

reduction:  Cd2+ (aq) + 2 e- Cd (s)     red = -0.40 V



cell = 0.74 V + (-0.40 V) = 0.34 V > 0 = spontaneous





balanced equation: 2 Cr (s) + 3 Cd2+ (aq) 2 Cr3+ (aq) + 3 Cd (s)



Redraw the galvanic cell sketch shown above, making the following substitutions:



M1 = Cr, M1m+ = Cr3+

M2 = Cd, M2n+ = Cd2+

anions = SO42-, cations = Na+





16-9) Calculate the minimum voltage required to bring about the reaction Ag (s) + Sn4+ (aq) Ag+ (aq) + Sn2+ (aq) by electrolysis under standard conditions, then balance the equation.



Click for Solution



16-9)

oxidation (at anode):  Ag (s) Ag+ (aq) + 1 e-     ox = -0.80 V

reduction (at cathode):  Sn4+ (aq) + 2 e- Sn2+ (aq)     red = +0.15 V



cell = (-0.80 V) + 0.15 = -0.65 V

minimum voltage = |-0.65 V| = 0.65 V



balanced equation:  2 Ag (s) + Sn4+ (aq) 2 Ag+ (aq) + Sn2+ (aq)





16-10) For the electrolysis of molten CaBr2, write the half-reaction that occurs at the anode and the half-reaction that occurs at the cathode, then balance the equation.

Click for Solution



16-10)

oxidation (at anode):  2 Br- Br2 + 2 e-

reduction (at cathode):  Ca2+ + 2 e- Ca



balanced equation:  2 Br- + Ca2+ Br2 + Ca





Click for Review Quiz 1

Click for Review Quiz 1 Answers
